Construction Works for the new corporate headquarters of Buffet Cuatrecasas in Barcelona

General information:

Project name: Monitoring of the construction works of the new Cuatrecasas corporate headquarters in Barcelona

Date (year): 2014-2017

Client: UTE CUATRECASAS

Location: Barcelona

Team of collaborators: Monitoring Team- Barcelona

Photography property: Rafael Vargas

Project summary:

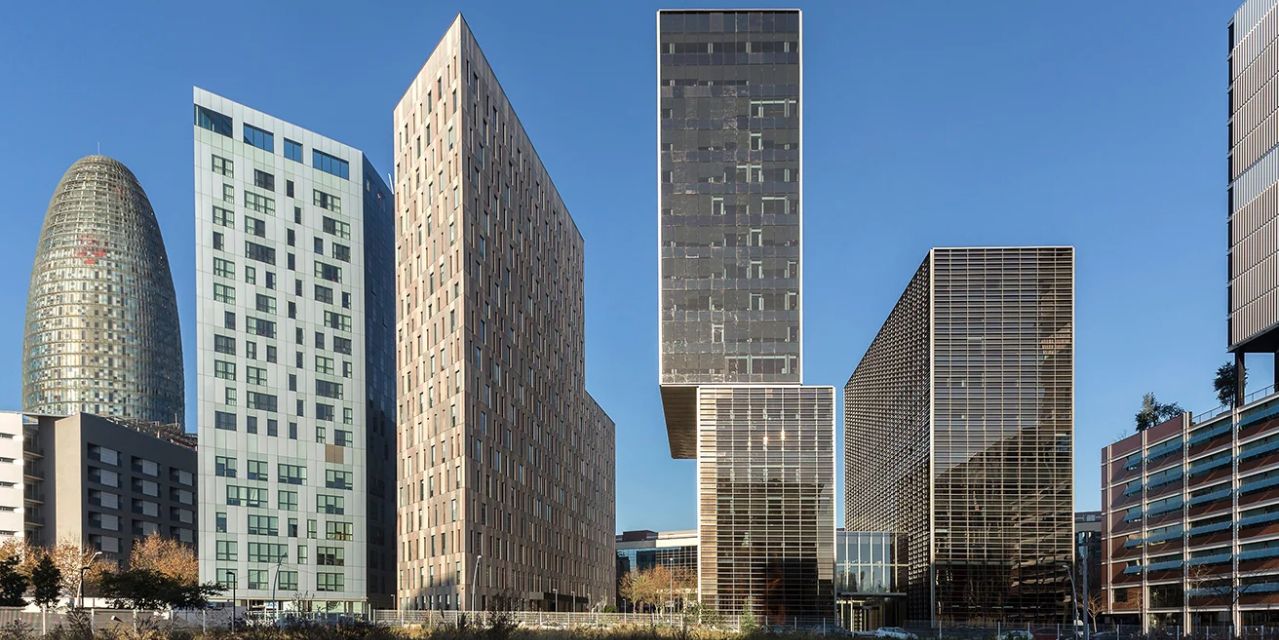

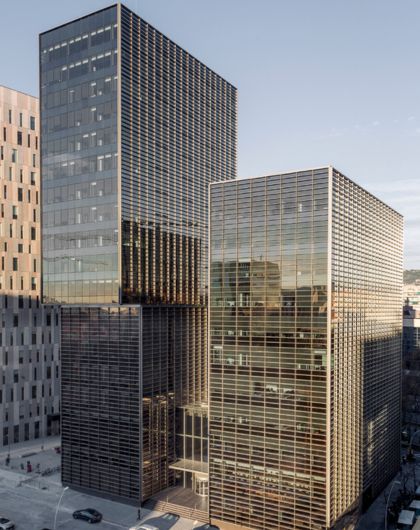

In the 22@ Audiovisual Campus in Barcelona, there is a CuatreCases corporate building designed by GCA Architects, with SOCOTEC responsible for structural monitoring during construction. The building has capacity for more than 1,000 people, consists of two towers of 11 and 18 floors with a maximum height of 72 meters and a total construction area of approximately 28,000 m²..

Project details:

In the construction of the structure, an ascending-descending system was used that allowed the excavation of the basement floors while the building was built up, which reduced construction times. To achieve this, temporary metal pillars were installed during the placement of the piles, which were then integrated as part of the final concrete structure once the excavation and the subpressure slab were completed. Throughout the process, a tensile-deformation control system was implemented to monitor the different stages of the work, both in the building itself and in its surrounding urban environment.

Monitoring systems for integrated control

[{"title":[{"value":"1. Inclinometer monitoring of the diaphragm walls"}],"text":[{"value":"Control of the angular deviations of the diaphragm wall with respect to its original vertical position. The data obtained is used to monitor the stability of the diaphragm wall and to detect any movement or deformation that may indicate foundation problems, differential soil settlement, or adverse geotechnical conditions.<\/p>\r\n","format":"basic_html"}]},{"title":[{"value":"2. Monitoring of settlements in the backfill of the diaphragm wall enclosure"}],"text":[{"value":"Process to evaluate the stability of the ground and ensure that there are no excessive movements that could compromise the integrity of the diaphragm wall or cause problems in nearby structures.<\/p>\r\n","format":"basic_html"}]},{"title":[{"value":"3. Piezometric monitoring in the interior and exterior of the diaphragm wall enclosure"}],"text":[{"value":"Process to evaluate and control hydrogeological conditions during construction and ensure that water levels do not cause stability problems in the diaphragm wall or adjacent structures.<\/p>\r\n","format":"basic_html"}]},{"title":[{"value":"4. Settlement control in structure"}],"text":[{"value":"To evaluate the stability and safety of the structure, ensuring that settlements are uniform and within the established design limits. And in the case of detecting unusual or excessive settlements, to take corrective measures to prevent damage.<\/p>\r\n","format":"basic_html"}]},{"title":[{"value":"5. Control of vibrations"}],"text":[{"value":"To control vibrations generated during construction to ensure the safety and durability of structures.<\/p>\r\n","format":"basic_html"}]}]
